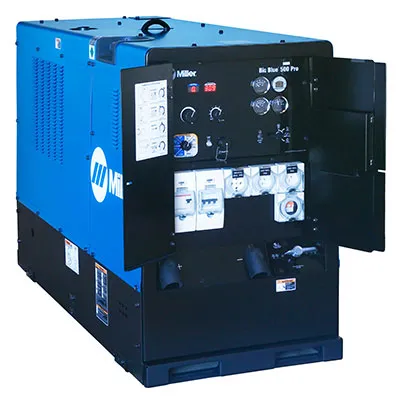

Big Blue 500X Pro
Auto Remote Sense
Detects if a remote control is plugged into the 14-pin receptacle and eliminates confusion of a remote/panel switch.
Infinite Arc Control
Allows the arc characteristics to be changed for specific applications in Stick, MIG and FCAW.
Lift-Arc TIG with Auto Crater & Auto Stop
Lift-Arc TIG provides soft TIG arc starting without the use of high frequency, while Auto Crater and Auto Stop eliminates tungsten and workpiece contamination.
Thermal Overload Protection
Prevents machine damage if the duty cycle is exceeded or airflow is blocked.
- Digital Preset Weld Meters
- Cold Weather Starting Aids
The Vault
Ultimate control board reliability. Solid-state control technology, housed in a sealed vault. The vault's sealed connections are made through watertight plugs that make these components impenetrable to dust and moisture.
Remote Oil Drain
Prevents spills and makes servising easy.
Meter Maintenance Display
Includes oil pressure, coolant temperature, battery voltmeter, fuel gauge and engine hour meter.
Low OCV Stick (VRD)
Reduces the open-circuit voltage to 15 volts when the welding power source is not in use. This feature is now built into the Big Blue 500X Pro for increased operator safety without compromising arc starts.
Heavy Duty Low Speed Industrial Diesel Engines
The cleanest, greenest diesel power available. Deutz T4F models utilise diesel oxidation catalyst (DOC) technology to keep the air clean with NO exhaust aftertreatment maintenace.
Polarity Change Switch
Switch allows easy change of weld polarity, without the need to undo weld cabels.
Auxiliary Power*
- 1 x 380 V 32 Amp 3 Phase Sockets
- 2 x 240 V 15 Amp 1 Phase Sockets
3 Year Warranty
Welder/generator is warranted by Miller for 3 years, parts and labour. For details, refer to the Miller warranty statement. Engine is warranted separately by engine manufacturer.
*Generator auxiliary power is 60Hz, and intended for operating equipment associated with welding, such as angle grinders, drills and floodlights. Some Australian 50Hz equipment incorporating induction motors, such as pumps, fans, air compressors, refrigeration or air-conditioners, may not operate correctly and could be damaged. Refer to appliance supplier or manufacturer to confirm suitability.
