Circulation Heaters
Circulation Heaters
Warren Electric Corporation Circulation Heaters are designed and manufactured in a wide range of models, ratings, and watt densities for many applications. Circulation Heaters consist of either a flanged or screw plug heater which is mated to a casing with inlet, outlet, vent, & drain options to meet your specifications.
The packaged system with a Warren Electric Circulation Heater is designed to supply the right amount of energy to heat the process fluid to the desired temperature, for a given flow rate. Circulation heaters with brazed or welded construction, center core baffles for increased velocities available.
|
Circulation Heater Specifications
|
|
|
0.5 to 800 kilowatts
|
|
|
Up to 600 volts, Single or 3 phase
|
|
|
ANSI up to 24 Inch & Custom Sizes
|
|
|
2" NPT, 2-1/2" NPT, 3" NPT
|
|
|
Up to 1500 PSIG
|
|
|
Up to 24" Pipe
|
|
|
Carbon Steel, Various Stainless Steels, Incoloy
|
|
|
Steel, Various Stainless Steels
|
|
|
Carbon Steel, Various Stainless Steels, Incoloy
|
|
|
Up to 160 inches
|
|
|
Refer to Heater Element Sheath Material Options
|
Standard Circulation Heaters are furnished with high temperature insulation and steel jackets. Circulation Heater models can be furnished without insulation and jackets for lower-temperature applications. (A cost savings to you.) Standard pressure vessels are up to 24" pipe and are Carbon Steel.

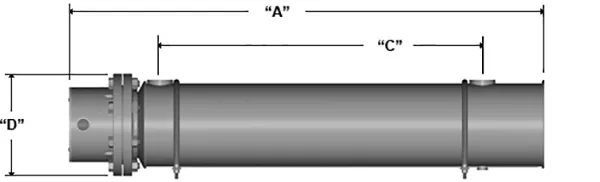

Warren Electric Circulation Heaters have universal or custom mounting brackets available. These Circulation Heaters have inlets, outlets, drains, or extra openings in your choice of female coupling (standard), threaded male pipe stub, or flanged. Ciculation Heater overall and immersed lengths, and inlet and outlet dimensions, can be varied to suit your application.
Features/Options
|
|
- Temperature Control Options
|
|
|
|
|
|
- Element Supports and Baffles
|
