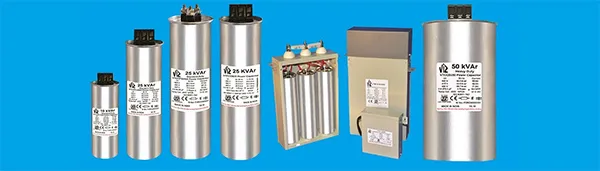

BASIC DUTY CAPACITORS

BASIC DUTY CAPACITORS

The Basic Duty series is a super compact economical series, covering the power range upto 25 kvar with just one capacitor in a cylindrical aluminium case.

The Basic Duty capacitor is especially designed for use in simple light load applications where there are no harmonics present in the system. The capacitors are made in stack windings to allow for better heat dissipation.

Applications

• Automatic PFC equipment, capacitor banks
• Individual fixed PFC (e.g. motors, transformers, lighting)
• Group fixed PFC

Features

• Super Compact design in cylindrical aluminium can with stud
• Very low weight
• Stacked type construction
• MPP-technology with heavy edge ramp metallization
• Voltage range 230 to 440 V
• Output range 1 to 25 kvar (50 Hz)
• Starts from 1 kvar, to achieve Power Factor close to unity
• Low losses
• Zero Maintenance

Safety

• Self Healing Technology
• Pressure Sensitive Device
• IP 20 Terminals
• In built discharge resistors
