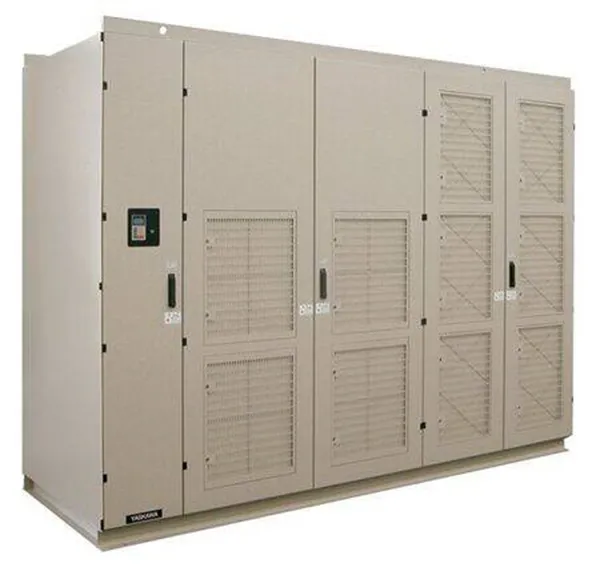

The FSDrive-MX1S matrix converter

The FSDrive-MX1S matrix converter is a drive system that employs the world's first matrix converter technology to eliminate all of the problems found in conventional medium-voltage motor drives. The FSDrive-MX1S demonstrates unbelievable energy savings due to its power regeneration as well as the optimum control of all medium-voltage motors due to sinusoidal waveforms of the power supply and output signals.Matrix Converter PrinciplesMatrix Converter for Lightning-quick Acceleration/Deceleration with Less PowerThe power output from the power supply to the motor and the power regenerated from the motor and returned to the power supply can be freely controlled by turning the semiconductor switches on and off in Pulse Width Modulation (PWM) control. Because AC voltage is directly output from an AC power supply to drive a motor, regenerative energy can be returned from the motor to the power supply.

Dynamic Operation at Variable SpeedsWith the power regeneration function that returns energy to the power supply when the motor decelerates, your machinery can quickly respond to sudden changes in acceleration or deceleration. The FSDrive-MX1S is designed for applications that require low-speed operation and quick deceleration because the FSDrive-MX1S requires no capacity margin when operating at low speeds.

Outstanding Energy SavingsThe power factor is always kept at 0.95. Because the power factor remains unchanged regardless of operation speed, no energy is wasted. The FSDrive-MX1S requires no output transformer because the AC voltage is directly output from an AC power supply and maintains a power conversion efficiency of approximately 98%. These features together with the power regeneration improve energy savings by at least 20% in comparison with conventional medium-voltage inverters (according to Yaskawa's test report).
