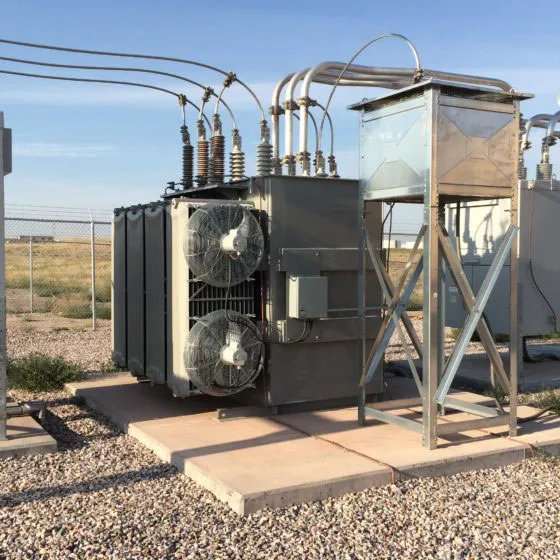

Substation transformers can be designed for an array of configuration options. VanTran offers top or side mounting bushings, such as partial and full-length air terminal chambers and close coupling flanges on all tank quadrants. VanTran can take care of it, no matter your requirements.

Standard Features

• High Voltage NEMA 2 Hole Spade Bushings
• Low Voltage NEMA 4 Hole Spade Bushings
• Aluminum or Copper Windings
• Mineral Oil or Envirotemp™ Fluid
• 60 Hertz
• 65° Temperature Rise
• Pressure Relief Valve
• 1” Fill Plug with Schrader Valve
• Oil Level Gauge
• Oil Temperature Gauge
• Pressure Vacuum Gauge
• 1” Drain Valve with Oil Sampler
• External 5 Position No Load Tap Changer
• Anodized Aluminum Diagrammatic Name Plate
• ANSI 61 Gray Paint

Optional Features

• Non-Standard/Elevated BIL Adder
• Non-Standard Paint Color
• Forced Air Cooling Fans
• Removable Radiators
• 55° Temperature Rise
• 55°/65° Temperature Rise
• 50 Hertz Adder
• Watthour Meter Assembly
• Live Front Distribution Class Arresters
• Station/Intermediate Class Arresters
• BAY-O-NET Fuses
• Back-Up Fuses
• Dry Well Canister Fuses
• 1 Contact or Dual Contact Oil Level Gauge
• 1 Contact or Dual Contact Oil Temperature Gauge
• NEMA 3R Control Box
• NEMA 4 Control Box (Small)
• NEMA 4X Control Box (Stainless Steel)
• 120 VAC Control Cabinet Light
• 120 VAC Space Heater with Thermostat
• Drain/Breather
• Pressure and Vacuum Gauge with Bleeder
• Rapid Pressure Rise Relay w/ Seal in Relay
• Cover Mounted Pressure Relief Device
• Nitrogen Test Port/Gas Sampling Valve
• 2-Position LBOR Switch
• 4-Position LBOR Switch
• Delta-Wye Switch
• Infrared Viewing Windows
• Doorstops
• Removable Sill
• Electrostatic Shield between HV & LV
• U Channel Base
• Danger/Warning Sign
• Arc Flash Warning Sign
• Alarm Box Light
• Stainless Steel (304L or 316L) Tank, Base, ATC and Radiators
• Nitrogen Preservation System
• Neutral Grounding Resisters and High Resistance Grounds
