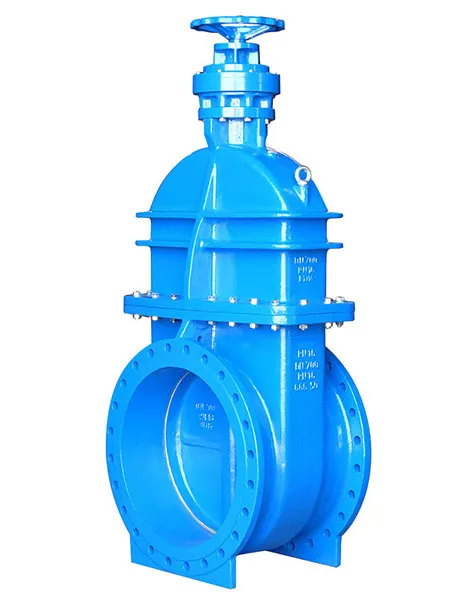

VAG KFS Gate Valve with non-rising stem

VAG KFS Gate Valve with non-rising stem

Metallic-sealing gate valve with flat-type face-to-face length of Basic Series 14 for waste-water applications. The zinc-free bronze seat rings and stem nut make it particularly resistant to media contained in waste water. Also suitable for industrial applications.

• Sealing system/standard: Metallic sealing in accordance with EN 1171 (DIN 3352 - Part 2)
• Face-to-face length: acc. to EN 558, basic series 14 (DIN 3202, F4)
• With flange ends on both sides acc. to EN 1092-2, PN 10
• inside
• With handwheel
• Adjustable stuffing box
• With drain plug
• Depending on the operating pressure, a gearbox may be required
