Vac U Max

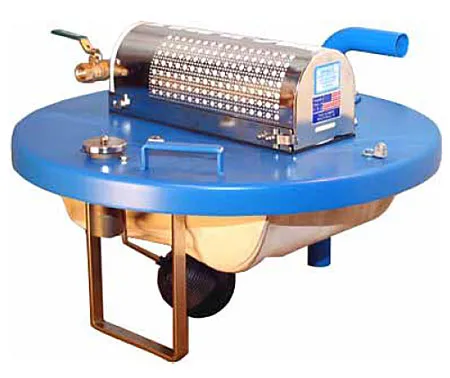

MDL55, Single Venturi, Wet or Dry Vacuum - Stainless Steel

Wet and dry vacuum, single venturi power unit, cover unit fits any minimum 16 gauge, 55 gallon steel drum.

Standard Equipment

Vacuum power head with:

• Single venturi suction source
• Noise muffler and guard for sound levels below 80 dbA
• Manual HP air control valve
• Adjustable orifice assembly for vacuum control 8" Hg. - 16" Hg
• Internal Dust Filter
• AutoVac Liquid Cut-off
• 1.5" Material inlet

Collection Container (Supplied separately):

• Cover unit fits any minimum 16 gauge, 55 gallon steel drum

Technical Data

Single venturi power unit

• Maximum suction power 16" HG (208" H2O)
• Maximum air flow 100 SCFM
• Suction connection 1.5"
• Air operated, requires 35 SCFM @ 60 PSI compressed air
• Compressed air connection 1/2 " NPT (female)
• Noise level 79 DBA @ 6" Hg
• Dimensions 24" diameter
• Standard finish Blue Powder Coat
