UniTorq Actuators & Controls

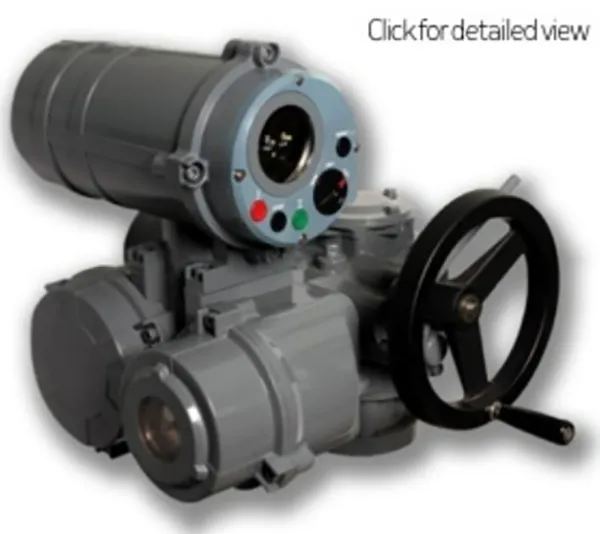

UTM Series Multi-Turn Electric Actuators

The UTM series multi-turn electric actuator provides safe, reliable, proven performance for use in industrial valve applications. With torque offerings up to 405,000 ft-lbs of torque and thrust ratings up to 1.2 million lbs. Available in single phase 220v or three phase 230/460v power, the affordable UniTorq UTM series is an ideal solution for your valve automation needs.

Features

• Durable, compact, corrosion resistant powder coated aluminum housing
• Manual operation through side mount handwheel with automatic declutch lever
• High torque/low inertia motor with embedded thermostat, Class F insulation
• Detachable thrust base, with copper alloy drive bushing
• 4 limit switches for open and closed position indication
• 2 torque switches for open and closed directions
• Anti-condensation space heater - thermistor type
• IP68 enclosure: submersible to 25' for 72 hours
• Sealed worm gear case, EP lithium type grease lubricant (MIL-23827B)
• Meets AWWA requirements for electric motors
