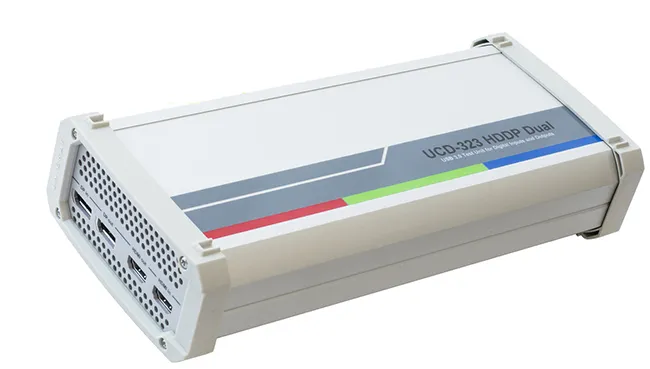

UCD-323 DP and HDMI Test Device
4K COMPLIANT VIDEO CAPTURE UNIT AND TEST SIGNAL SOURCE
FOR TESTING HDMI AND DISPLAYPORT SINKS AND SOURCES
UCD-323 HDDP Dual enables testing all aspects of HDMI 2.0 and DP 1.2 inputs and outputs.
UCD Console GUI is the preview and control application for UCD-323. The user can monitor, sink and source video and audio, evaluate the upstream and downstream link statuses and control the link parameters.
UCD-323 is compatible with TSI, Unigraf's high level software API. Combined with the pre-programmed Test Cases in TSI, UCD-323 is a functionality testing tool with ready test routines for all support interfaces.
UCD-323 is an Authorized Test Equipment for testing HDCP 2.2 Compliance on DisplayPort Sinks and Sources.
CD series is a family of compact sized interface testing devices utilizing USB 3.0 interface. They provide a flexible and robust way for both laboratory desktop debugging and automated testing of the functionality of the display interface. The dedicated hardware and the easy to apply high level SW library provide an optimal platform for creating sensitive but short cycle time functional tests.
UCD series frame grabbers are designed for test applications. UCD Console and Unigraf TSI SDK/API provides the test system integrator ready made high level Test Sets to verify a display interface. The details of the test sequence and the control of the test hardware are readily integrated in the high level Test Sets.
