SpeedMarker 700

Fully automated laser marking for components

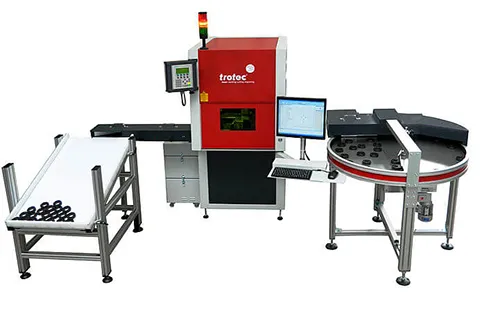

Trotec developed a fully automated laser workstation with table magazine, separating unit and conveyor belt for the marking of ball bearings. With the laser software SpeedMark, the ball bearings can be marked with production data, country of origin, type identification or the name of the producer. All the relevant data can be directly processed from the customers SAP system. This fast and automated safety class laser marking process enables users to achieve short cycle and setup times.

The ball bearings are loaded to the maintenance-free fibre laser with a separating unit and conveyor belt. As the system is fully covered, the parts can be marked at high speed while laser safety class 2 is guaranteed. The marked bearings are then transported to a storage bin with the conveyor belt where they can be collected and unloaded. Even larger parts or different materials can be marked by using the front housing.
