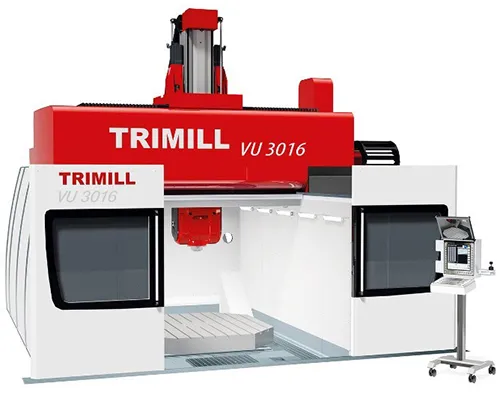

5 Axis vertical Milling Machine with Rotary Table VU 3016

5 Axis vertical Milling Machine with Rotary Table VU 3016

  • Rigid 5-axis machine, especially developed for the pressing tools, injection moulds and forging dies

  • 5-axis machining in one set-up achieved with fork-type milling head and rotary table

  • Upper gantry portal machine for high dynamics and accuracy

  • Unique closed design of the cross-beam and cross-slide (box-in-box

  • design) with internal, quadruple-guided, ram-type milling unit (Y- and Z-axis)

  • Constantly perfect cutting results thanks to unique thermo-symmetric design

  • Stationary work piece for the highest surface qualities

  • Very compact machine with large working area utilizing minimal floor-space

  • High productivity - roughing and finishing operations in one set-up

  • Customized distance between spindle nose and clamping surface of rotary table

  • Ergonomic configuration - easy access to the machine tool interior

  • Superior cost-performance ratio
