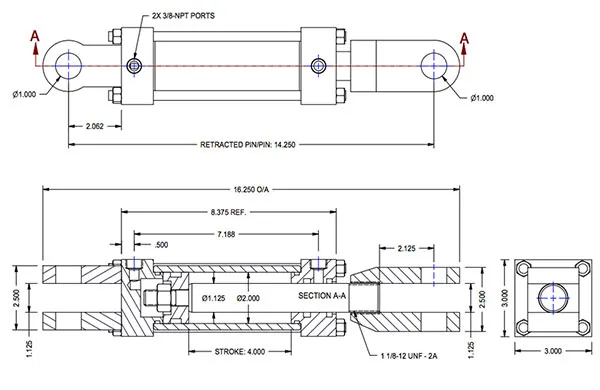

Titan TR Style Tie Rod Cylinders

Titan TR Style Tie Rod Cylinders

Operating Pressure: 2500 PSI

• Primed and painted gloss black
• 2 ports 90 degrees to each other
• Lock nut: self locking, to enable easy removal for servicing.
• Polyurethane U-CUP, ensuring positive seal even at high temperatures and high pressure.
• Tube has made out of AISI 1020 Steel
• AISI 1141 Steel for the Tie Rods, to prevent stretching.
• Piston made from Ductile Iron Grade 65-45-12, for increased durability.
• Large pin to allow maximum load
