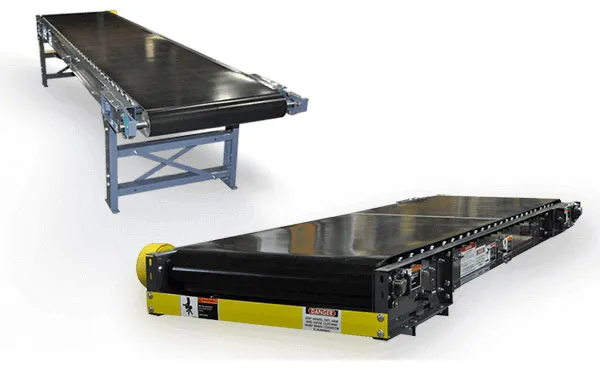

Roller Bed Conveyors
Titan Conveyors offers roller bed belt conveyors when the loads are heavier than usual or when much longer lengths are required than a standard slider bed belt conveyor can handle.
Two different types of roller conveyors are offered. The Model 105 uses a 1.9" diameter x 16 gauge roller with a 7/16" hex shaft. The rollers can be mounted on 3", 4" or 6" centers depending on the application. A heavier roller and a larger diameter drive pulley can be used when the load or length dictates upgrading the standard unit.
The heavier rollers on Model 109 are 2-1/2" diameter x 11 gauge roller with an 11/16" hex shaft. The drive is upgraded from a 4" diameter drive pulley to an 8" diameter drive pulley.
