Timesavers, LLC

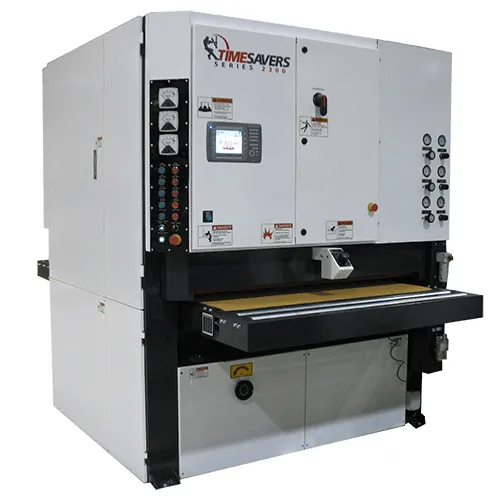

2300 SERIES | SEGMENTED POLISHER

A fully customizable machine that can be equipped with a variety of heads (including cross-belt, drum, combination, dual-action, segmented, dual-action segmented and chevron), making it a great choice for small to mid-sized cabinet, millwork and furniture plants seeking maximum versatility. Ideal for wide belt sanding & calibrating, veneer or lacquer sanding and panel sanding.

The easy to operate touch screen programmable controller, stores different machine set-up recipes for fast, easy changeover and increased productivity. Machine design utilizes a compact frame design which saves valuable floor space.

Specifications

• Number of Heads: 1-3

• Head Types: Cross-belt, Drum, Combination, Dual-Action Segmented, Dual-Action Segmented + Chevron

• Machine Widths: 52”, 64”

• Up to 30 HP Main Drive Motors

• 75” or 103” Abrasive Belt Length

• 0-6” Bed Opening (32”-38” Passline)

• 15-45 FPM Feed Speed

• 8” Diameter Contact Drum

• 7” Diameter Drum and 3” Platen on Combination Heads and Segmented Heads

• PLC Control w/HMI Interface

• Contact Timesavers for Custom Features and Options
