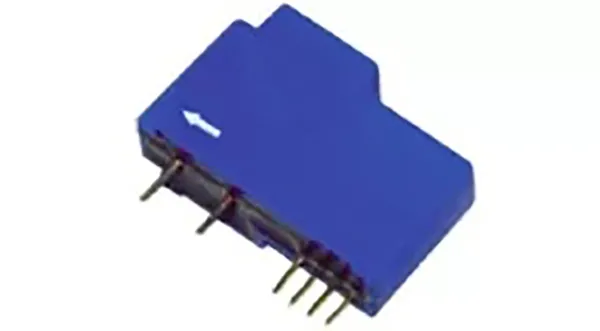

HOS-20AP Hall Effect Sensor

HOS-20AP Hall Effect Sensor

The HOS-AP series of PCB mounted, open loop, Hall Effect current sensors are designed for applications requiring the measurement of DC current and DC current pulses.

Features:

• Contact-less, non-intrusive current sensing.
• DC current, DC pulse and AC current measurements.

Performance:

• Accuracy: ± 1% Nominal Current
• Linearity: ≤ 1%
• Response Time: ≤ 10µSecond
• Offset Voltage (@ +25°C): ± 30mV maximum for primary current In = 0.
• Temperature Drift: ± 1mV/ °C maximum (-10 °C to +70 °C)

Specifications:

• Frequency: 0 to 20kHz.
• Dielectric withstand voltage between Primary and Secondary: 2,500V RMS @ 50HZ for 1 minute.
• Load resistance: > 10 kOhms .
• Operating Temperature: -10ºC to +70ºC.
• Storage Temperature: -15ºC to +90ºC.
• Supply Voltage: ±12V … 15V (± 5%).
• Supply Consumption: 25mA.
• Construction:
  • Epoxy encapsulated housing.
  • Case material – Nylon, UL flame retardant rating 94 V-0.
• RoHS Compliant
