Precise Control Air Conditioners
Precise Control Air Conditioners
Features:
• High capacity thermoelectric design
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambients by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
- For flush mount configurations (contact TECA)
Overview:

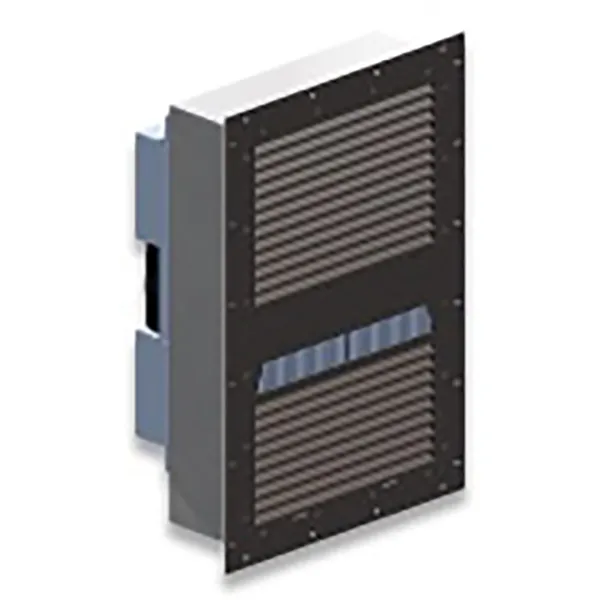

The Precise Temperature Control series air conditioners are designed for applications where controlling and maintaining the internal temperature of an enclosure is of importance. These products are available in through mounted, flush mounted and internal mounted configurations.
The integral TC-5300 PWM controller enables these products to cool and heat as needed. An air sensing precision three wire platinum RTD and a USB communications port are standard on these products. Monitor, adjust the set point and tune your control to your specific enclosure using the included tecaLOG software.
Controller Features:
• Integral “tunable” din rail mounted PWM temperature control• Manually set or autotune to set point for best PID values• 4 Programmable temperature zones with 4 independent PID settings• Multi-segment ramp/soak programs with loops• Internal RTD sensor, built into the air conditioner• External RTD sensor can be located in critical location of your enclosure• USB communication with easy to use software• Labview VI examples available
