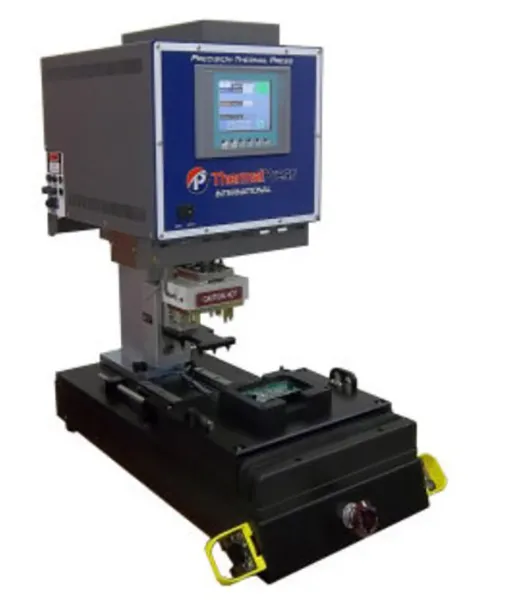

C-Series Thermal Press

C-Series Thermal Press

“Flexibility and Precision You Can Count On”

The C-Series are our most popular Thermal Press series. The C Series Thermal Press has an open “C-Frame” format engineered to accommodate all sizes of parts and assemblies. The C-Series lends itself well to many tooling and part handling options.  Like all of our Thermal Press systems, it is fully self-contained and can easily sit on most work benches or tables.

Thermal Press is the industry leading standard in the engineering of robust precision machines and thermal assembly systems used for; heat staking, swaging, sealing, insertion, film/filter sealing/welding, heat seal connectors, hot bar soldering, and many other precision assembly processes.

Key Features

• Open Format “C-Frame” Machine Design
• Available in various heights and configurations to accommodate tall &/or deep parts
• All systems are equipped with Quick Change tooling features
• Standard 4″ Stroke with Adjustable Hard Stop
• Available in Force Ranges from 0-1000 lbs
• Base and Actuator are pinned and slotted for repeatable change out of tooling packages (Hot or Cold) without any re-alignments
• Programmable Velocity Control for Precise Actuation (Travel) Speed
• HMI Color Touchscreen for Operation, Setup and Machine Controls (multiple password protection levels)
• Recipe Storage via HMI Touchscreen
• Integrated Digital PID Temperature Controls (Multi-Zone)
• Precision Regulators & Digital Pressure Controls (with Power Boost Option)
• Integrated Digital Timers, Counters and Positional Data
• Programmable Alarms (Operational Lockout on all parameters)
• Two Hand Start Buttons with Anti-Tie Down Safety Circuitry
• OSHA, CE, NFPE and NEC compliant
• 3-Point leveling of is built in to the C Series Thermal Press
• Test Ports for easy calibration & validations
• Easy rotational adjustment of thermal tooling to align with parts/fixtures
