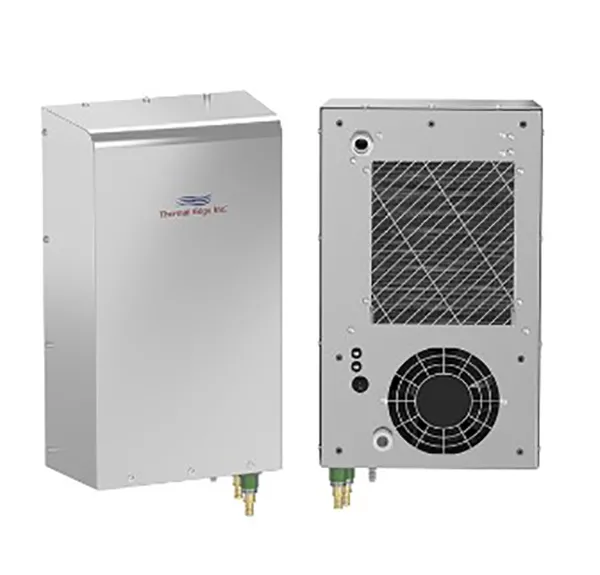

A2W30 Enclosure Air to Water Heat Exchanger

Hydro Edge Air-to-Water Heat Exchangers are ideal for food processing plants, agricultural irrigation, waste-water treatment, automotive plants, flour milling and mining operations where water is readily available onsite.

KEY DESIGN FEATURES

• Protection from outdoor contaminants with a closed loop design.
• Constant elimination of condensate
• Easy maintenance with a filter free design
• Flexible application with the narrow body style fitting 12” deep enclosures.
• Eliminates water and corrosion buildup in washdown applications witha sloped roof design and seam welded shroud.
• Ruggedly designed for manufacturing environments in powder coated steelor corrosion resistant stainless steel
• Maintains UL Tested NEMA Type 12, 4, and 4X
• Ambient operating temperature: 34°F – 140°F
• Overall dimensions: 19.7” H x 11.8” W x 5” D
• Air flow rate: 129 CFM @ 0 Static Pressure
• Unit weight: 21.4 lbs.
