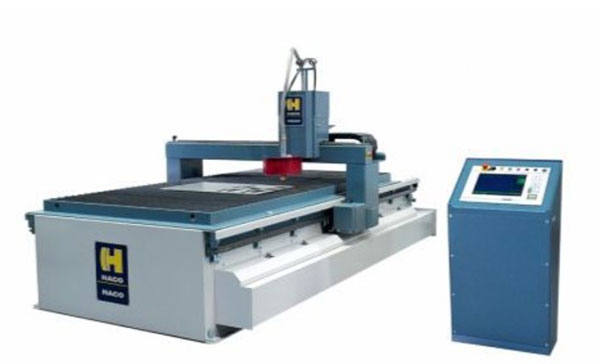

A plasma cutting machine with integrated fume exhaust chambers and bolted-on cutting table
The HACO KOMPAKT has a sturdy welded monobloc frame structure, with integrated fume exhaust chambers and bolted-on cutting table. Mounted on the sides of this stable structure, the linear guide-ways guarantee a very precise movement (along the length of the machine) of the gantry, which is driven by 2 X-axis motors with rack-and-pinion transmission.
Plasma cutting head
On the gantry, the Plasma Cutting Head (High-Definition or Conventional Plasma Torch) is driven by 1 Y-axis motor with rack-and-pinion transmission and 2 oversized linear guides. The height movement of the torch is driven by a DC motor and ball screw. During the cutting process, the plasma arc voltage automatically takes control of this axis.
