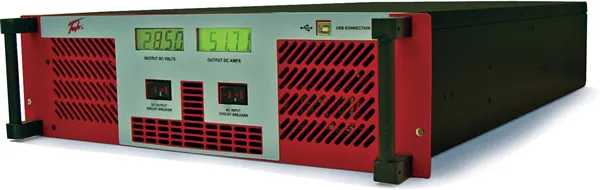

Astrapi i Rack Mount Power Supply Module

Astrapi i Rack Mount Power Supply Module

Astrapi i Rack Mount Power Supply Module

The Tesla™ Astrapi i Rack Mount Power Supply Module is expertly engineered as a single source of clean power for data centers and industrial control and communication equipment. The Power Supply Module is capable of delivering 6.3 kVA of reliable, filtered, regulated dc power while operating from single-phase ac power. As always, the unit is backed by a Tesla™ 2-year warranty, a trained support team, and an experienced staff of customer service professionals.

Astrapi i Rack Mount Power Supply Module Specifications

Models:

AST100-12 14.25 V (12 V) @ 400 amps continuous

AST100-24 28.5 V (24 V) @ 200 amps continuous

AST100-48 57 Vdc (48 V) @ 112 amps continuous

AC Input:

Operates and charges from Single Phase or Three Phase 200-260 Vac 40 Hz - 1 kHz

33.5 amps @ 208 Vac 60 Hz

Contact Tesla™ Industries for receptacle information.

Dimensions:

28.98” L x 19” W x 5.19” H

736.2 mm x 482.6 mm x 131.9 mm

Weight:

56 lbs (25.4 kg)

Warranty:

2 Years (3 Year Optional)

Included

  • TI2007-060 Single Phase AC CordOR
  • TI2007-061 Three Phase AC Cord

Features

  • Ability to be ran paralleled or in a series.
  • Maintenance-free design.
  • Conforms to EIA-310 standard.
  • Fits in a 3U rack space.
  • Built-in Voltage and Amp Meter with backlighting.
  • Exceeds MIL-STD-810/MIL-STD-461
  • 99% efficient active power factor correction.
  • 1% THD (Total Harmonic Distortion.)
  • Host Gateway running LINUX Operating System.(optional)
  • Communications interface to connect with other Tesla™ Astrapi i Modules.
