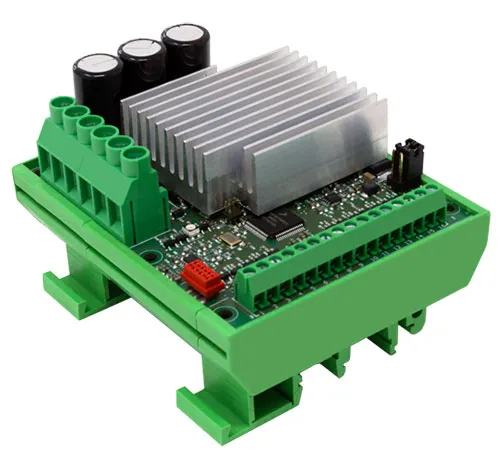

AZ2 is a full electronic motor drive designed for the control of two DC motors in extra-low voltage applications. The power stage is based on MOS transistor technology, controlled by a pulse width modulation (PWM). A microcontroller elaborates the control data, generates the output waveforms and manages the communication interfaces. The user can exchange data and commands using the digital I/O and a Modbus interface; the last one is used for communication with the PC software through which the user can change parameters, monitor the status of the drive and read diagnostic information.
- control of one/two linear actuators, independent or synchronized
- 12V DC to 48V DC power supply
- 10A or 15A, S3 – 30% – 5 minutes
- 12 digital inputs, 2 outputs
- incremental encoders
