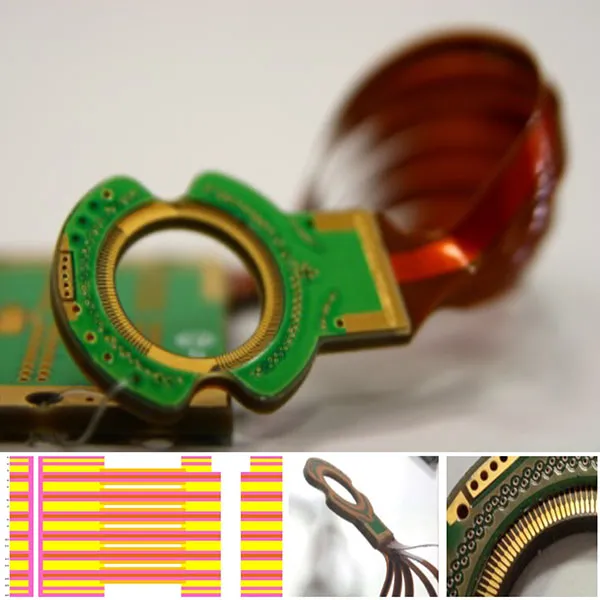

Multilayer 16layer with 6 flex layer

Multilayer 16layer with 6 flex layer

Application: Military - Pointing SystemTechnology: Multilayer 16layer with 6 flex layer for dynamic applicationBuild up: cavity from top side to layer 3 on flex for opening on wire bondable padsMaterial: FR4 High TG Iteq IT180 + Adhesive Less Polyimide filmFinishing: electrolytic Soft Gold inside cavity on flex + Enig and electrolytic hard gold on surface
