Tatung Electric Co., of America, Inc.

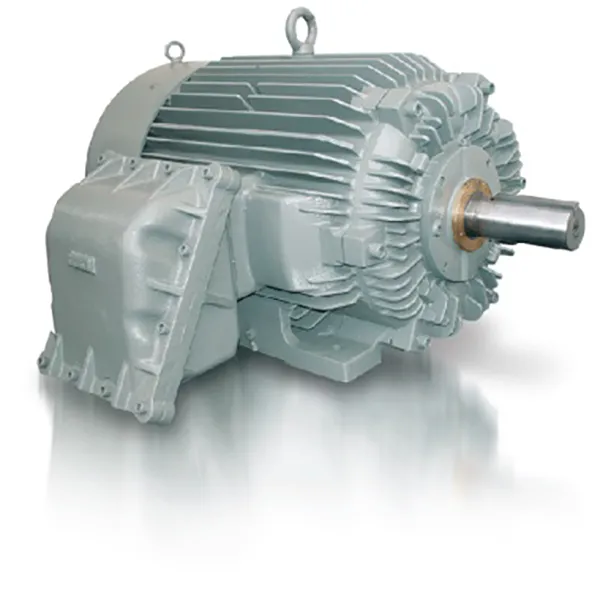

Explosion Proof NEMA Premium Efficiency Series

Explosion Proof NEMA Premium Efficiency Series

• Output : 1HP ~ 200HP
• Poles : 2, 4 & 6P
• Frame size : 140T ~ 447T
• Frequency : 60 Hz

Explosion Proof NEMA Premium Efficiency Serie

• Efficiency : NEMA Premium Efficiency
• Output : 1HP ~ 200HP
• Poles : 2, 4 & 6P
• Frame size : 140T ~ 447T
• Power : 3-Phase
• Frequency : 60 Hz
• Standard Voltage : 230/460V (Usable on 200V) ,575V
• Service Factor : 1.15
• Electrical Design : B
• Insulation Class : F with B Rise @ 1.0 S.F.
• Frame Material : Cast Iron
• Hazardous locations :Division 1 class I, Group D, class II Group E,F&G
