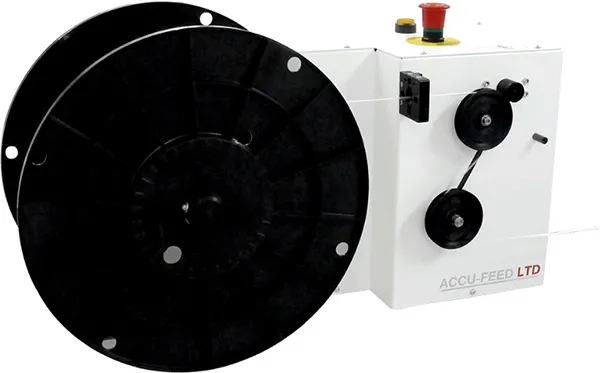

Medical Low Tension Dereeler

Medical Low Tension Dereeler

ACCU-FEED LTD Overview

The Low Tension Dereeler is designed to provide constant, low force tension payout of tubing to downstream equipment for high volume, critical tolerance manufacturing operations. The medical low tension spool feeder features a low mass, non-static proportional speed dancer arm. This spooled medical tubing feeder is torque-limited for safety and does not require any electrical connection to its host machine.

Key Features

• Benchtop plug and play configuration for fast tooling change overs.
• Spring-tensioned dancer arm with adjustable force control.
• Spool handling capability up to 10 lbs.
• PID feedback ensures low tension is always maintained for material payoff.
• This medical low tension tubing dereeler can be easily integrated with SYNEO Accu-Cut, Accu-Drill, and Accu-Punch machines.

Materials

• Polymer Tubing on spool.
• Nitinol and stainless steel wire on spool.

Specifications

• Power: 100-230 VAC, 50/60 Hz, 1A
• Air requirements: N/A
• Dimensions (W x D x H): 29" x 9" x 14"
• Weight (standard machine): 20 lbs.
• Shipping weight (standard machine): 40 lbs.
• HMI: N/A
• CE certified model available
