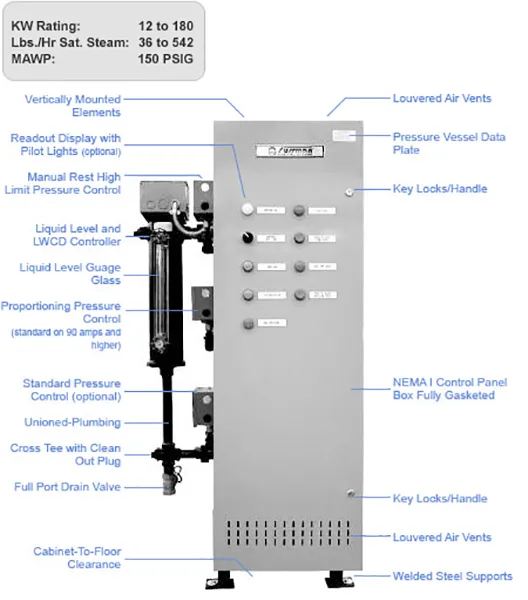

SVS 12-180 - Electric Steam Boiler

SVS 12-180 - Electric Steam BoilerSussman SVS Electric Boilers are safe, versatile easy to-use heat sources for low or high pressure steam. Applications include steam for:

• Chemical Tanks
• Reactors, Distillation and Autoclaves
• Dyestuffs
• Food Processing
• Jacketed Vessels for Processes
• Pipe Tracing
• Viscous Material
• Fuel Oil Line Heating
• Anti-Freeze Protection
• Comfort Heating & Humidification

SUSSMAN SVS ELECTRIC BOILERS ARE ENGINEERED FOR:

• Easy Installation
• Automatic Operation
• Clean, Fume-Free, Quiet, Reliable Steam at the Turn of a Switch
• Primary or Alternate Source of Steam
• Low Maintenance
• No Fuel Delivery/Storage Problems
• Factory Tested - Ready to Operate

SVS STANDARD FEATURES:

• Insulaed Carbon Steel Pressure Vessel ASME Section 1, 150 PSIG with "S" Code Stamp.
• Built to UL, National Board Registration
• Standard 150 PSIG Design – Lower and Higher Pressures Available
• Fully Insulated Vessel, 2" Thick Insulation
• ASME Code Safety Valve
• NPT Inlet/Outlet Fittings Up to 3-1/2", Flanged Inlet/Outlet Fittings for 4" and over
• Vertically Mounted Incoloy Sheathed Immersion Elements Complete with Epoxy End Seal
• NEMA I, Epoxy Finished Gasketed/Louvered Control Panel and Heater Enclosure
• Blowdown/Drain Valve
• Pressure Gauge with Isolating Stopcock
• Liquid Level Gauge Glass Assembly
• Check Valve and Solenoid Feedwater Valve
• Standard Pressure Range 20-150 PSIG (lower and higher pressures may be available on request)
• Modulating Pressure Control (standard over 90 Amps)
• Electronic Feedwater Control
• Boiler Operating Mode Indicator Lights
• Sub-Divided Circuit Fusing, Class "J", HRC Form 1
• Industrial Rated Magnetic Contactors
• Manual Reset High Limit Pressure Control
• Main & Auxiliary Low Water Cut Off Controls
• 120V Control Circuit, On/Off Switch and Indicating Pilot Light
• 120VAC Control Circuit Transformer w/primary and secondary fusing

SVS OPTIONAL EQUIPMENT:

• Steam Outlet Globe Valve (150 PSIG)
• Timed Automatic Blowdown Systems
• Auxiliary Low Water Cutoff
• Manual Reset Low Water Cutoff
• Auxiliary High Pressure Cutoff, for Auto or Manual Reset
• High Pressure Alarm
• Low Pressure Alarm
• Audible Alarm with Silencer
• Pilot Light for each Heating Stage
• Manual Off/Auto Switch for each Heating Stage
• Voltmeter, with 3 Position Selector
• Wattmeter
• Ammeter with 3 Position Switch
• Unfused Disconnect Switch
• Safety Door Interlock Switch
• Motor Starter with Overloads
• Flanged Inlet/Outlet
• Vacuum Breaker
• kW-HR meter
• Ground Fault Indicator
