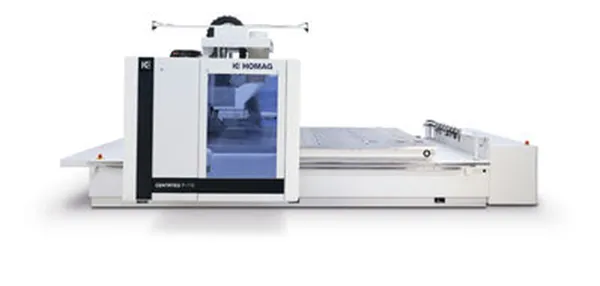

HOMAG CENTATEQ P-110-R Flat Table

HOMAG CENTATEQ P-110 CNC Machining Centers

This series offers high levels of performance and versatility.  The new machine concept is based on compact technology, a reduced installation area and operation directly at the machine. The CENTATEQ P-110 series includes 3-, 4- and 5-axis solutions for the processing of kitchen, office and solid wood furniture, as well as for the construction of stairs, windows and doors.

HOMAG CENTATEQ P-110/R Flat Table

CENTATEQ P-110/R ( BMG 115/42/F/R-Future)

• 4’ x 13.7’ Working Field
• Pressure-Sensitive Bumper Safety Technology (No Safety Mats, No Perimeter Fencing)
• 12/16 HP (9/12 KW) (S1/S6) Drive5CS Five-Axis Routing Spindle with HSK-63F Interface
• 1 Ride Along In X Axis 14 Position Automatic Tool Changer (Carousel)
• 1 Fixed Location / 10 Position Linear Automatic Tool Changer (Rack on right hand side)
• Tool Length Control
• CNC Controlled Z axis for Optimal Dust Extraction and Weight Distribution
• 12 Vertical Boring Spindles With Patented Quick Change / Mechanical Locking Spindles
• 6 Horizontal Boring Spindles (H4X, H2Y)
• 1 Grooving Saw for 125 mm Dia. Blade, Aligned for X/Y Axis (0/90 degree)
• 4200 mm x 1550 mm (13.75' x 5') Aluminum Matrix Vacuum Table (4200 mm x 1250 mm x 260 mm Maximum Part Size with 5-axis)
• Total of 16 Locating Pins (Fixed Location) for Panel Location at Front and Rear of the Vacuum Table
• Pendulum Processing Cabability
• Two (2) 345 M3/H Vacuum Pumps (at 60 Hz)
• Vacuum Plug-In Connection in Left & Right Zones (for Customer Fixtures)
• PC86 PowerControl with PowerTouch with Windows 7
• Moveable User Terminal with 10 Meter-Long Cable
• ECO Air Conditioner for the Switch Cabinet
• woodWOP Version 7.x for the Controller
• Copy of CNC 3D Simulation (for the Controller)
• Convenience Package (VK #1233)
• woodWOP Office Professional V 7.x, DXF Import Basic & CNC 3D Simulation for the Office PC (Single Place Licenses)
• woodWOP CAD/CAM Interface Standard for AlphaCAM
• Multi-Tap Transformer
• Electric Components According to UL Standards
• English Documentation
• Tool Box Starter Kit for Nesting (#9952), Tool Chuck for Saw Blade, and 350 mm Diameter Saw Blade
