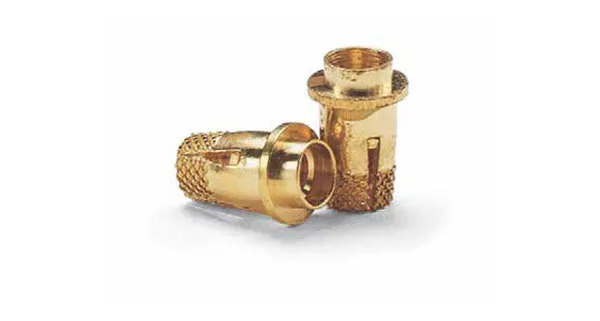

Dodge Clinch Expansion Inserts

Dodge Clinch Expansion Inserts

Our Clinch Expansion Insert takes the impressive design features of a standard expansion insert and adds a pilot and a flange. The pilot can be clinched over a terminal connector with the flange providing a large surface for electrical contact.

The installation and clinching operations of the Clinch Expansion Insert are simultaneous, using a simple press-in-type tool. Like our Flange Insert, much of the installation force is absorbed by the flange allowing for use in thin-section applications.

This insert is used extensively in the electric and electronic industries.

Fast Facts:

• Same superior design characteristics as standard expansion inserts.
• Features a pilot that can be clinched over a terminal connector.
• Features a flange for effective electrical contact.
• Suitable for use in thin sectioned applications.
• Used extensively in the electrical industry.
• Simple installation tooling.
