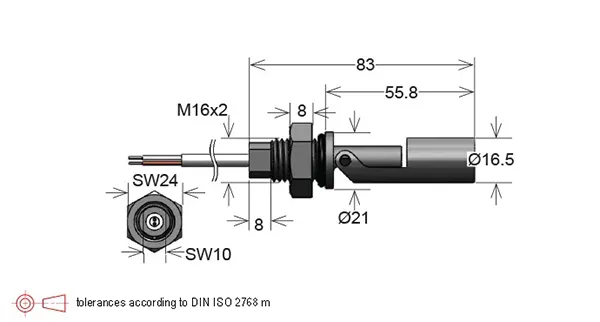

LS03 Series Liquid Level Sensor
DESCRIPTION
Compact single level horizontal mount LS03 Series Liquid Level Sensor used in level control, detection and monitoring. High power switch option, other cables and connectors. High temperature resistance up to 150°C.
SPECIFICATIONS
Contact Form
1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.), 1C (SPDT) Changeover
Rated Power Max.
100W/400VDC/1.0A
Shaft/Float
PA, PP/PA, PP
APPLICATIONS
Automotive, appliance, HVAC/R, test & measurement
