Standard Resistance Welder Company

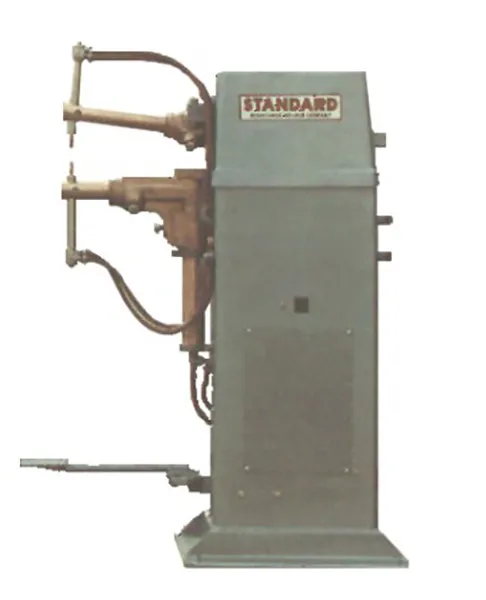

Foot Operated Rocker Arm Spot Welder

MODEL FR1 AND FR2

Heavy Duty Foot Operated Rocker Arm Spot Welders in KVA Sizes 10-15-20-30 Furnished For Operation On One of the Following Voltages 208, 230 or 460, 575 (Other Voltages Available).

STANDARD FEATURES

• Universal Horns -- Provides 90° and 30° Mounting of Holders
• Swivel Lower Horn Holder-Column Mounted and Adjustable Vertically.
• Quick Acting Clamping Devices For Adjusting And Securing Horns and Lower Swivel-Eliminates Spreading and Deforming of Casting When Making Necessary Adjustments.
• Water Cooled Ejector Type Electrode Holders.
• Water Cooled Transformer With Vacuum Impregnated Coils and Positive Locking Tap Switch.
• Limit Switch Initiation Complete With U.L. Approved Primary Contractor
• Cast Aluminum Hood For Easy Access and Concealment of Rocker Arm Bearings
• Swivel Mounted Foot Treadle
• 1 Inch Diameter Tip Holders
