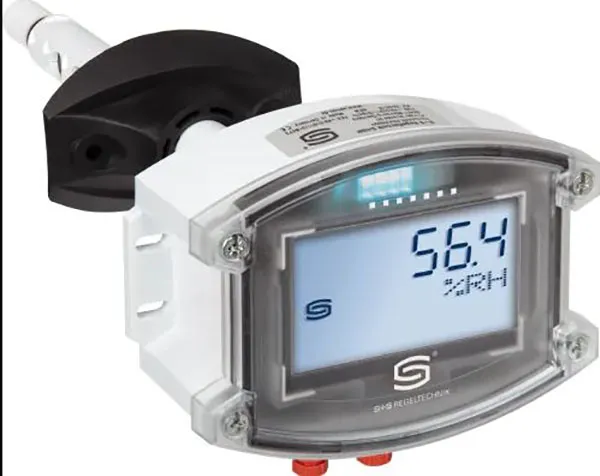

Duct humidity and temperature sensor (± 2.0%) HYGRASGARD® KFTF - EtherCAT P
DUCT HUMIDITY AND TEMPERATURE SENSOR (± 2.0%) HYGRASGARD® KFTF - ETHERCAT P
Interconnective HYGRASGARD® KFTF - EtherCAT P duct humidity and temperature transmitter with M8 plug-in connector (EtherCATP-encoded), Bluetooth-enabled, in an impact resistant plastic housing with quick-locking screws, optionally with/without display and bar graph, with plastic sinter filter (replaceable), incl. mounting flange.
The sensor device serves to detect various parameters in humidity measurement. It measures relative humidity (0...100% r.H.) and ambient air temperature (–35...+80°C). These measurands are used internally to calculate further output values: absolute humidity (0...80 g/m³), mixture ratio (0...80 g/kg), dew point temperature (–20...+80°C) and enthalpy (0...85 kJ/kg) while ignoring atmospheric air pressure. A long-term stable, digital sensor guarantees precise measuring results. The sensor is factory-calibrated.EtherCATP-enabled measuring transducer for industrial requirements with maximum reliability: includes easy PLC integration using the devices ESI configuration file, diagnostics (such as communication failure counter), advanced setting options, access to historical data (min/max) and sensor service interval determination. Optionally with large back-lit three-line display (witjh customised programming in the 7-segment and dot-matrix ranges) and bar graph (7-digit, LEDs freely configurable) for graphical display, e.g. as a traffic light indicator.
AVAILABLE CONFIGURATIONS
|
item number
|
designation
|
|
2003-4221-9100-001
|
HYGRASGARD® KFTF-ECATP
|
|
2003-4222-9100-001
|
HYGRASGARD® KFTF-ECATP LCD
|
TECHNICAL DETAILS
Data points
Temperature [°C], relative humidity [% r. h.],dew point [°C], absolute humidity [g/ m3],mixture ratio [g/ kg], enthalpy [kJ/ kg]
Sensor
digital humidity sensor with integrated temperature sensor, low hysteresis, high long-term stability
Sensor protection
plastic sinter filter, Ø 16 mm, L = 35 mm, exchangeable (optional metal sinter filter, Ø 16 mm, L = 32 mm)
Protective tube
PLEUROFORM, material polyamide (PA6), with torsion protection, Ø 20 mm, NL = 235 mm, vmax = 30 m/s (air) (on request, optional stainless steel V2A (1.4301), Ø 16 mm)
