Spike’s LIS medium-voltage load interrupter switches provide safe, reliable switching and fault protection. The metal enclosed assembly – consisting of a 5kV – 38kV switch, bus and fuses – is designed to meet the requirements of a wide range of industries such as healthcare, data center, industrial, utility, mining and commercial.

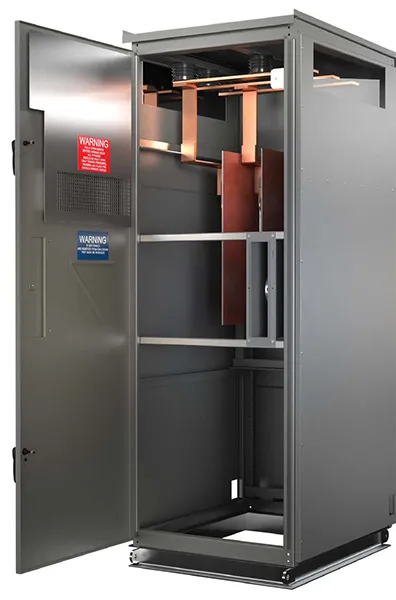

Metal enclosed LIS Load Interrupter Switchgear Spike LIS Load Interrupter Switchgear is an integrated assembly of switches, bus and fuses that is constructed for medium voltage circuit protection. All major components are tested to the highest allowed voltage, establishing one source of responsibility for the equipment’s performance and ensuring high standards in quality, coordination, reliability and service. A complete line from a single switch to multiple switches integrated together on a common bus are available.
Load Interrupter Switch Features
Enclosures are available in both outdoor and indoor standard painted Ansi gray. Custom colors are available upon request. Standard standalone single switches do not come with modular expansion bus capabilities to connect future switches together.
- 5kV – 38 Kv voltage class
- 600A & 1200A continuous load interrupting ratings, custom switches up to 5000A.
- Main bus is rated for 600 amperes, 3000-ampere bus is also available
- Non-fused or fused with current limiting or boric acid-type fuses
- Manual or motor operated Indoor or outdoor non-walk-in enclosures
- Single switches and transformer primary switches
- Duplex load break switch arrangements for selection of alternate feeds
- Lineups with main bus
- Standard arrangements with automatic transfer control systems (two sources feeding one bus or two sources feeding two buses on a split bus with tie switch)
Standard design configurations for:
- NEMA pads for cable lugs
- Kirk Key Interlock Provisions available Disc Handle with Lock Out Tag Out Provisions
- 8”x16” High Impact Viewing Window that permits full
Load Interrupter Switch Fuses
“AC” fuses are current limiting fuses of the backup type. These fuses can interrupt all currents from their maximum interrupting current (I1) to currents as low as the minimum interrupting current (I3) mentioned in the corresponding lists of each fuse model.
