Versatile

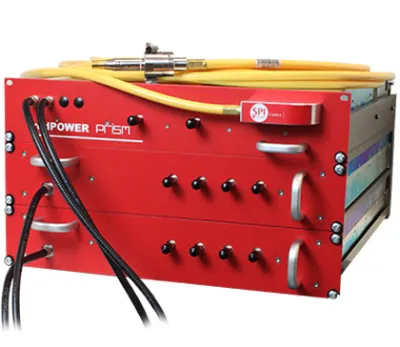

redPOWER® PRISM Multi kW OEM core products comprise a 1.5kW unit and a multi-port High Power Combiner (HPC) unit. Multi-kW Lasers can be built by combining multiple 1.5kW units with an HPC unit. A single output fiber from the HPC delivers power to the process tool. As well as containing high power fused components, the HPC also contains a Laser control and interface card.
The system integrator adds value to these basic units by providing the DC Supply, a suitable enclosure, a controlled coolant supply and system level safety control. For this latter function we are able to assist with an optional Beam Delivery Interlock Unit (as described below).
Easy Integration
The complete range of units are designed to mount into an industry standard 19” rack mount, giving a consistent look to the final Laser, and facilitating ease of enclosure sourcing.
Laser Modules
Each 1.5kW module is in a 3U rack mount case with a single mode output bare ended Fiber allowing straight forward splicing onto the High Power Combiner input port. Combining multiple modules together, allows the system integrator a flexible approach in choosing the desired multi-kW Laser source in logical power steps.
An on-board protection unit provides low level safety and integrity monitoring, plus shut down when required, and interfaces with Fiber Laser control (in the HPC tray).
