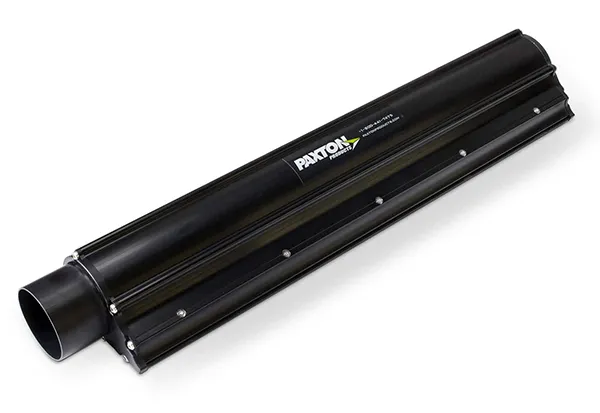

High Penetration Aluminium Air Knives

High Penetration Aluminium Air Knives

Extruded Aluminium Air Knives are suitable for a wide range of industrial environments, providing ‘precision’ air flows, as well as a long life-span.

Key Features:

• Provides thorough, instantaneous drying & blow-off.
• Creates high efficiency / high penetration ‘Precision’ air flows.
• Various inlet and mounting configurations.
• Exclusive design generates optimum air speed delivery and exit velocity.
• Lowest cost of operation (less energy required to achieve drying and less air needed)
• Hard anodised protective finish for durability and long life.
• High quality extruded aluminium construction.

Key Specification:

• AnodisedAluminium Alloy AA25 with Stainless Steel Fittings (304).
• Three profile sizes available – 82mm, 101mm and 137mm.
• Available in 10mm increments, with a maximum length of 3.5 metres.
• Various mounting options are available including studs/spigots and tapped holes.
• Multiple inlets are required for longer Air Knives.
• Lightweight design – 82mm profile = 0.23kg + 1.96kg per metre, 101mm profile = 0.27kg + 2.3kg per metre, 137mm profile = 0.38kg + 3.6kg per metre.
