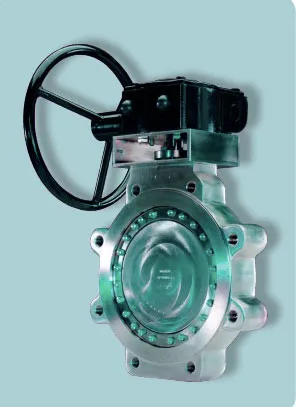

Triple Offset Butterfly Valves

Triple Offset Butterfly Valves

• Bi-directional zero leakage
• Zero seat/seal friction
• Low torques
• Excellent flow and throttling characteristics covering services from cryogenic to high temperature
• Excellent control of fugitive emissions
• Fire safe to BS6755 part 2 / API 6FA and API Std 607 4th Edition
• Standard materials conform to NACE, all exotic materials also available on request
• Laminated seat is mounted in the body, removing it from the erosive effects of the flowing media
• Both seat and seal are field-replaceable without special tools
• Gasket sealing face is completely uninterrupted by fixings
• Cavitation and noise reducers are available to complement the valve under high pressure drop process situations
• Also available as Double Block&Bleed (DBB) or with heating jacket
