SOCOMEC

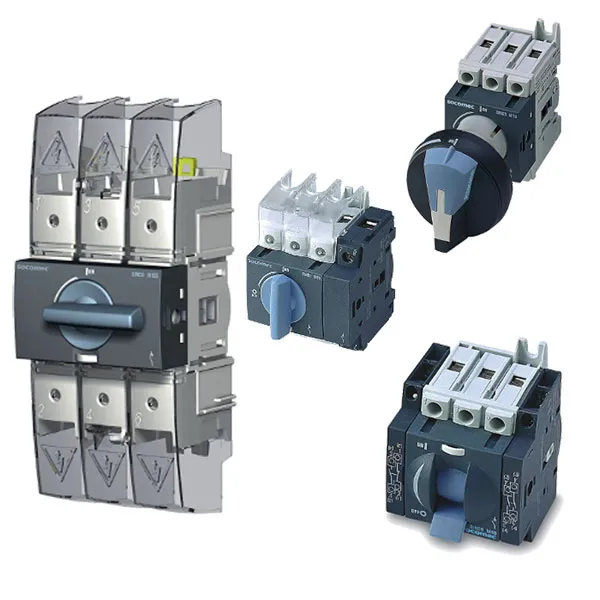

AC Non-Fusible Disconnect Switches-SIRCO M

Benefits

• Easy integration with a large range of accessories
• High short circuit current rating, up to 65 kAIC
• Upgradeability
• Double positive break indication given by a position indicator located directly on the product
• Direct or external handle
• Compact footprint
• DIN rail or base mounting
• Up to 8 poles or 4 poles MTS (UL508) or 4 poles (UL98)
• Finger safe

Standards

• SIRCO M UL 508:
• UL 508 listed, Guide NLRV File E173959
• CSA C22.2§14, class 3211-05 File 112964
• IEC 60947-3
• SIRCO M UL 98:
• UL98, Guide WHTY File E201138
• CSA 22.2#4, Class 4652-04 File 703166
• IEC 60947-3

Functions

SIRCO M non-fusible disconnect switches are compact switches. They make and break under on and off load conditions and provide safe isolation. These switches are extremely durable and are tested and approved for use in the most demanding applications. UL98 disconnect switches are rated as a branch circuit disconnect switch. They can be used in a variety of applications for general use. Range from 30 to 100A. UL508 disconnect switches are rated as a motor rated disconnect or local disconnect. They can be used as motor controllers. Range from 16 to 80.

Applications

• UL508: Industrial control system (Motor use)
• Supplemental circuit disconnects for equipment
• Manual motor disconnects
• UL98: Power distribution (General use)
• Service equipment
• Motor control centers
• Branch and feeder circuits
