Pressure Transmitter in Miniature Design

Pressure Transmitter in Miniature Design

Pressure Transmitter in Miniature Design

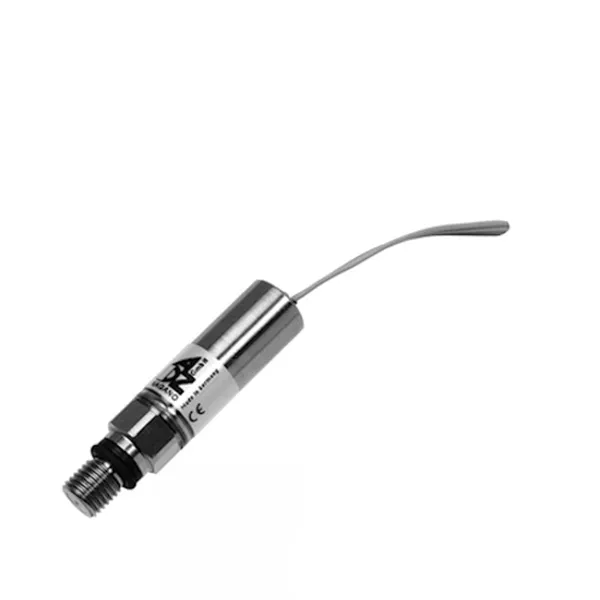

The miniature design pressure transducer is space saving and light weight. Despite the compressed dimensions and miniaturised design, it is all made of stainless steel and very robust. At the same time, it is full of know-how and can be customised to individual requirements such as pressure range or output signal. Popular applications for these sensors are motor sport and racing cars.

  • Minimum weight and total length with maximum over pressure and burst ratings
  • Fully welded construction
  • High chemical/media compatibility by the use of stainless steel
  • High rate of pressure cycle withstand

This pressure transducer series is designed and developed for applications with restrictions in space or weight. These are available in small pressure ranges of up to 20 bar in a housing version of Ø15mm outside and M10x1 pressure connection. For pressure ranges of 20 bar and up to 600 bar a version with a Ø12mm outside diameter an M8x1 thread is available.

The total length of about 50mm (including thread and cable outlet) and the total weight of about 50 grams gives space and room for applications with space and weight limitations and best solutions to integrate the sensors as embedded sensors. Typical output signals are ratiometric voltage output as well as voltage output up to 5Vdc with a 12V supply. Optional low power supply of down to 2.8V can be provided as well as a I2C digital output.

Products from this series can be supplied with a pressure port restrictor to reduce pressure spikes especially in hydraulic systems. The diameters of the restrictors are 0.6mm or 0.3mm. The pressure port and stainless steel sense element are completely electron beam welded and provide save over pressure and burst ratings.


  • Measuring ranges 0…1 to 0…20 bar (housing Ø ~ 14 mm)
  • Measuring ranges 0…25 to 0…600 bar (housing Ø ~ 12 mm)
  • Output signal 0.5…4.5 V ratio, 0…5 V non-ratio, 0…10 V
  • In combination with temperature probe (max pressure 20 bar)
  • No internal transmitting media (fully welded, “dry” measuring cell)
  • Media temperature range -40°C to 125°C
  • Round plug, ribbon cable
  • Degree of protection IP67
  • Highly reliable
  • Miniature design – length ~ 50 mm / housing Ø ~ 14 mm / weight ~ 20 g


Pressure range:

up to 600 bar

Max over pressure:

2 times nominal pressure

Min burst pressure:

3 times nominal pressure

Output signals:

0-5 V, 0.5-4.5 V ratiometric

Response time [10-90%]:

≤1 ms


0.5% F.S.

Working temperature range (media):

-40 … 125°C

Working temperature range (ambient):

-40 … 105°C

Material of parts in contact with media:

stainless steel 1.4301 / 1.4305 / 1.4542

Material of housing:

stainless steel 1.4301

Shock resistance (according IEC 60068):


IP class (according IEC 60529):

up to IP67


50 – 60 g

Minimum pressure cycles:



  • Automotive applications
  • Carry-on equipment
  • Race sport
  • Hydraulics and Pneumatics
  • Embedded systems
  • Mechanical engineering
  • Ultra mobile systems
