SJF Material Handling, Inc.

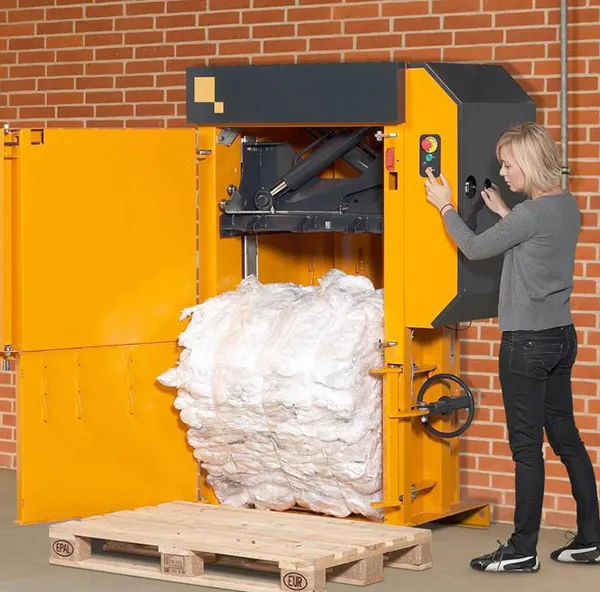

Model X10 -low profile

PRODUCT DESCRIPTION

The X10 is great for small retail shops, industrial outfits or others, who require a compact baler with high capacity. Its compact design makes it perfect for areas where overhead space is limited. The X10 is equipped with cross cylinders, so you get a machine with superior press force and low overall height. This unit has a relatively large filling opening, making daily operation as easy as possible.

This machine outputs bale sizes approximately: 30"W x 24"D x 24"H.

This baler features a threaded spindle to make opening the compression chamber door safe and easy. The bale is ejected via a safe two-hand operation. Baler strapping can be integrated into the unit on included strapping spools. The recommended size of strapping for this unit is 3/8" flat strap and will give you approximately 90 bales per roll.

Product features:

• Simple and safe operation
• Cross cylinders allow lower than traditional profile
• Easy to replace strap rolls
• Safe and efficient ejection system allows easy output of bale onto pallet or skid
• This unit is available in single and 3 phase power pack

Technical details:

• Press force: 22,000 lb.
• Power supply: 110V 20A 1-phase 60Hz
• Motor: 2 HP
• Noise level: 65 to 68 dB
• Cycle time: 45 seconds
• Dimensions: 52"W x 41"D x 75"H
