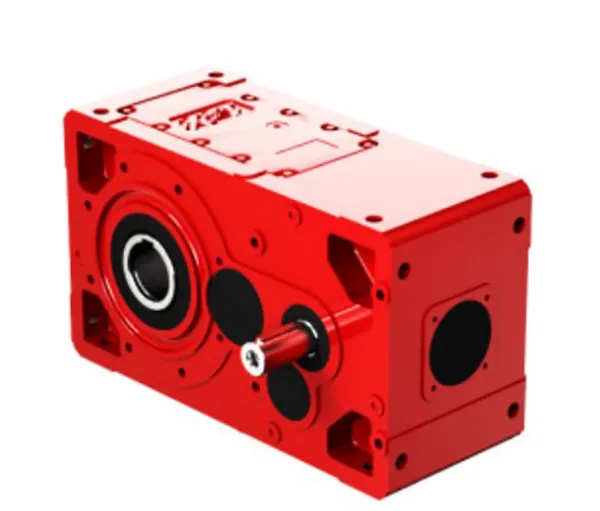

ZETECH
Mechanical Specifications:
Size6380100125140160180200225280320360
Ratio2.47 – 23.62.57 – 23.32.60 – 23.92.47 – 23.43.08 - 1332.57 - 1323.07 - 1302.50 - 1253.06 - 1272.53 - 1252.55 - 1233.12 – 122
Rated Torque [Nm]300 670 1,300 2,600 3,400 5,500 7,250 11,500 16,000 35,000 48,000 70,000
Rated Torque [in-lb] 2,655 5,930 11,505 23,010 30,090 48,675 64,163 101,775 141,600 309,750 424,800 619,500
Output Shaft Diameter [mm]3038 48 60 70 8090 100 110 140 160 180
Output Shaft Diameter [in]1.21.6 2.0 2.5 2.8 3.3 3.7 4.1 4.5 5.7 6.5 7.4
