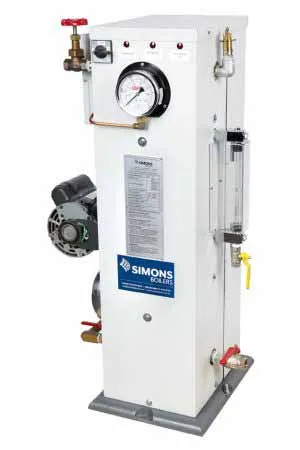

Simons SB 3S steam boiler

Simons SB 3S steam boiler

The Simons SB 3S steam boiler is widely accepted as the most preferred type of boiler to satisfy a demand for steam up to 67 kg/hr, where a simple, maintenance free and economical installation is required. All Simons Boilers are designed to Australian Standard No. 1228.

FEATURES

• Capacity :20 to 42 kilowatts (2 to 4.2 HP). 32 kg/h to 67 kg/h
• Electric elements:  side entry individually flanged and bolted to provide quick and simple replacement at minimum cost.
• Fully packaged : with feed water pump mounted to boiler cabinet, all integrally piped and wired, pretested ready for connection to services.
• Restyled cabinets : with panels to provide ready access to all working components.
• Working pressures to 725kPa (10 5 P.S.I.G) Higher pressures available on request.

BENEFITS

• Steam capacity ranges from  26.9 kg / hour to 56.1 kg / hour at 690 Kpa.
• No boiler attendant required.
• Simple to install, maintain and operate.
• Fully qualified after sales service.
• Compact design.
• Supported by a sales and service network throughout Australia, Asia and the Middle East.

APPLICATIONS

• Hospital Sterilisers.
• Autoclaves.
• Laundries & Dry Cleaners
• Industrial process heating.
• University research, teaching & development applications.
• Steam jacketed pans for heating food, pharmaceutical, cosmetic and chemical products.
• Humidification to air conditioning systems for humidity control.
• Steam injection to bakery and pastry ovens, dairies, tool steel, cable making.
• Horticultural soil sterilising.
• Apiaries.
• Steam rooms.
• Tyre retreading equipment.
