SIKO Products Inc.

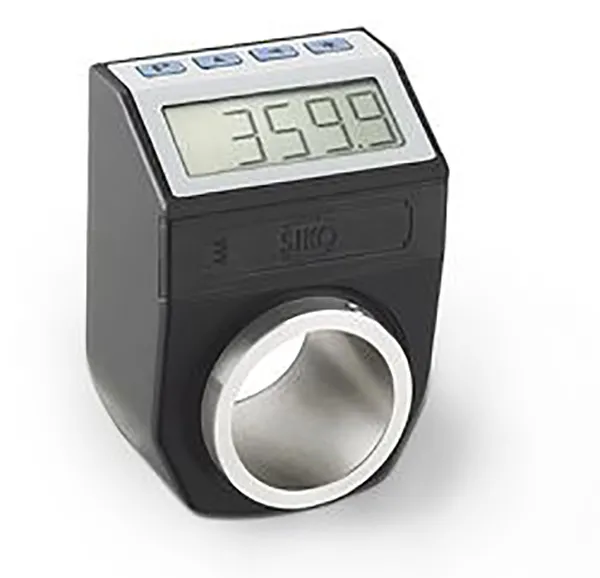

Electronic position indicator DE10P

The DE10P position indicator is a freely programmable and battery-powered position indicator. The DE10P position indicator provides maximum flexibility, since the always same basic device can be parameterized to the desired spindle pitch, display accuracy and reading position in an application-specific manner. The parameterization is performed directly on the device using operating keys.

Profile DE10P:

Freely programmable directly via buttons on the device

Hollow shaft, max. Ø 30 mm

Stainless-steel hollow shaft

LCD display with 6 digits and special characters

Digit height approx. 11 mm

Long battery life

Easily replaceable batteries (standard AAA)

Incremental measurement function, absolute value display

High protection class
