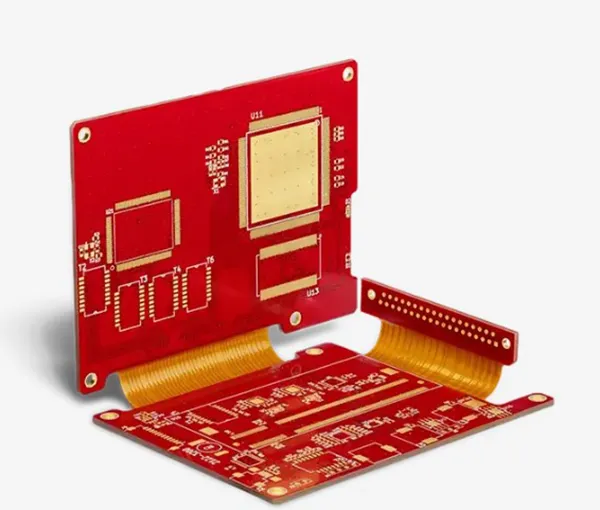

Flex and rigid-flex PCBs.

Flex and rigid-flex PCBs.

Flex your design potential with Sierra Circuits

Get flex and rigid-flex PCBs manufactured in the United States at any volume. Sierra Circuits leads the industry in quality and turnaround times.

• Freedom of designThe elastic nature of flexible PCBs allows for placement around edges and folds.
• Reduced space and weightFlex circuit’s polyimide material is lighter than FR4. The use of flexible flat cables (FCC) take up less space than traditional wires.
• Increased reliability and durabilityFlex circuits can be significantly warped/deformed without breakage. Standard materials can withstand as many as 200,000 bending cycles.
• Improved heat dissipation and airflowPolyimide flex materials are suited for very high temperatures compared to FR4.
• Use in harsh environmentFlex circuits can be built with materials that are suitable to use in harsh operating environments (materials that have the following properties: waterproof, moisture proof, shock proof, high temperature oil, corrosion resistant).

Ready to start building with flexible PCBs? Sierra Circuits engineers can help you efficiently design and manufacture your flex, rigid-flex, and HDI flex PCBs, right here in the U.S.

PRODUCT PROMISE

Surface finishes:

• HASL (vertical or horizontal)
• Lead-free HASL
• OSP (Shikoku F2)
• OSP (Entek)
• ENIG
• Immersion silver
• Immersion white tin
• Tin nickel
• Electrolytic soft gold
• Electrolytic hard gold
• Selective gold

Standard flex materials:

• Polyimide (Kapton) 0.5 mil to 5 mils (.012mm – .127mm)
• Adhesiveless copper clad base material 1 mil to 5 mils
• Flame retardant laminate, base material, and Coverlay
• High performance epoxy laminate and prepreg
• High performance polyimide laminate and prepreg
• UL and RoHS compliant material on request
