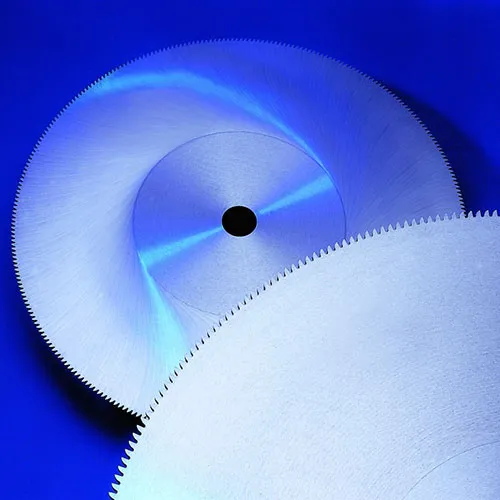

FRICTION SAW
Large Friction Saws
Used for friction cutting cold carbon and alloy steels, usually multiple pieces. Finer tooth pitches used to generate frictional heat during cutting. High pressure cooling and clearing of teeth and generous body cooling is vital to blade operation.
Blade Materials:
POWERBLADE Carbon, Manganese Steel, normalised body 22 HRC with flame hardened teeth 42 to 46 HRC. Tough crack resistant blade body combined with hard wear resistant teeth, to provide considerably increased blade life between sharpens compared to medium carbon manganese steel blades.
Size Range:
1000mm to 2400mm diameter (39 to 94 inches)
6mm to 16mm thick (0.236 to 0.63 inches)
Tooth Pitch 5mm to 28mm (0.2 to 11/8 inches)
Tooth Profiles:
Standard profile is 60°Peg used for both hot and friction cutting
Special tooth form for specific applications
60°Peg with land – friction cutting steel tube
Handsaw tooth – solid bar and billets
XLR and Skip tooth – hot cutting jumbo beam
