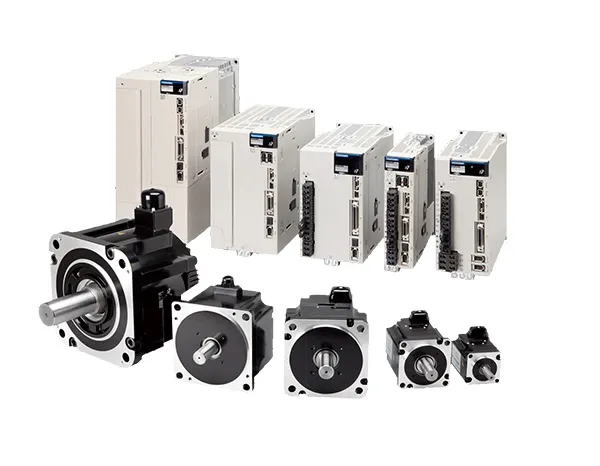

AC SERVO SYSTEMS - SIGMA 7 ROTARY

Created with the design concept of "seven ultimate e-motional solutions," the Σ-7 series delivers the world's highest performance while providing other features such as further improvements in safety and an environmentally friendly design to meet the changing needs of its users. This series offers solutions that are guaranteed to satisfy users in all kinds of scenarios in the life-cycle of systems.

Ultimate system performance
The high-performance of Σ-7 SERVOPACKs translates into ultra-high-speed and ultra-high-accuracy control, which maximizes system performance.

Enhanced vibration suppression function

• Notch filter
  Suppresses high-frequency vibrations of 500 Hz or higher.
  ⇒Number of filters increased from 2 to 5.
• Anti-resonance control adjustment
  Suppresses vibrations at frequencies ranging from several hundred Hz to 1 kHz.
  ⇒Vibrations can now be suppressed at two different frequencies (in comparison with one frequency in earlier models).
• Vibration suppression
  Suppresses vibrations at low frequencies (30 Hz and lower).
  ⇒Vibrations can now be suppressed at two different frequencies (in comparison with one frequency in earlier models).
