Senva Inc.

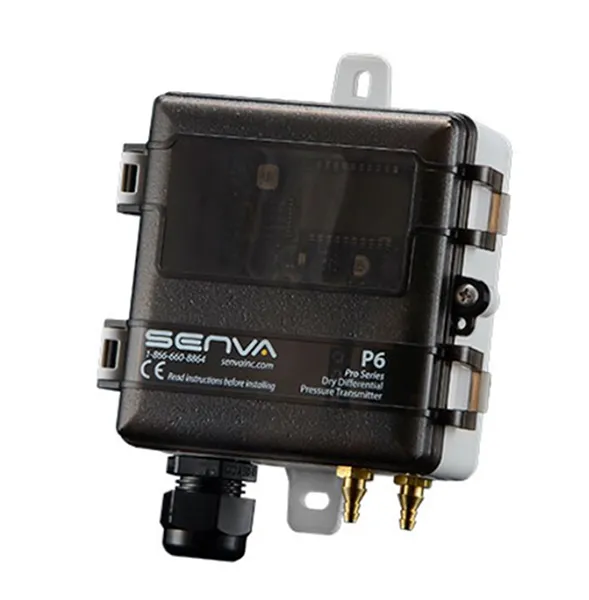

P6 Universal Nema 4 Pressure Sensor

0-5”, 15”, and 40” W.C. ranges; 10 selectable sub-ranges0-1250, 3750, and 10000 Pa ranges; 10 selectable sub-rangesLCD display and LED indicatorNema 4X enclosure (Duct/port version)

• Selectable 4-20 mA loop-powered, 4-20 mA 3-wire, 0-5VDC, 0-10VDC for compatibility
• 10 field selectable pressure ranges to address a wide range of applications with high resolution
• Field selectable Pa or WC” display
• Zero calibration push button and remote contact input
• Models for duct or remote probe applications
• Selectable fast/slow response rate (2s fast, 8s slow)
• Non-position sensitive for easy placement
• Conduit ready or use included water tight cable gland
• LED: Power heartbeat, ,momentary rapid flash = autozero complete, continual rapid flash = 110% over pressure
