Sellers Manufacturing Company

918 West Walnut Stree Danville, Kentucky 40422 USA

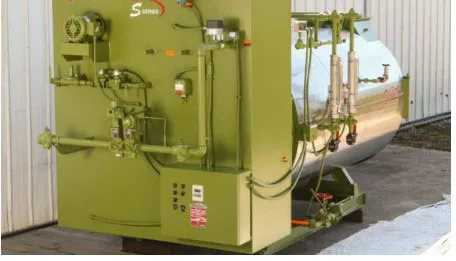

Single-Pass Fire Tube Boilers

Style: High Efficiency Single-Pass Design
Burner: Sellers Multi Flame w/ Parallel Positioning
Size: 40 – 900 HP (1.7 – 37.7mmBTU)
Burner Operation: Modulating (3:1 on 40-175HP & 4:1 on 200-900HP)
Emission Rating: 30ppm NOx
Certifications: ASME, CRN, & UL
Warranty: 20-Year (Pressure Vessel) / 5-Year (Burner) / 1.5-Year (Parts)
Fuels: Natural Gas, Propane, & Digester/Methane
Application: Steam (15-300 PSI) & Commercial Hot Water & Industrial High Temperature Water 350+ Deg F.
Style: High Efficiency Single-Pass Design
Burner: Sellers Multi Flame
Size: 10 – 900 HP (0.4 – 37.7mmBTU)
Burner Operation: On/Off w/ Pilot Hold
Emission Rating: 30 & 20ppm NOx
Certifications: ASME, CRN, & UL
Warranty: 20-Year (Pressure Vessel) / 5-Year (Burner) / 1.5-Year (Parts)
Fuels: Natural Gas, Propane, & Digester/Methane
Application: Steam (15-300 PSI) & Commercial Hot Water & Industrial High Temperature Water 350+ Deg F.
Style: High Efficiency Non-Ferrous Single-Pass Design
Burner: Sellers Multi Flame w/ Parallel Positioning (40-300HP) & Sellers Multi Flame (10-300)
Size: 10 – 300 HP (0.4 – 12.6mmBTU)
Burner Operation: On/Off (10-300HP) & Modulating (3:1 on 40-175HP & 4:1 on 175-300HP)
Emission Rating: 30ppm NOx
Certifications: ASME & UL
Fuels: Natural Gas & Propane
Application: Chemical Clean Steam (15PSI), Humidification (15PSI), & Direct Injection (15PSI)

Technical Specs
