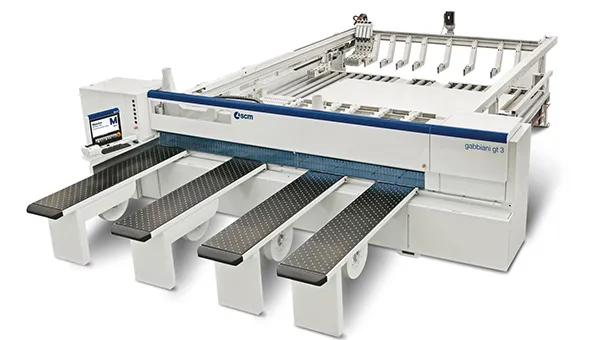

gabbiani gt 3
gabbiani gt 3
New single blade beam saws offer high performance in quality for cut finishing and working speed in order to meet the production needs of the furniture companies. Ideal solution for the company that requires to process medium-large batches. gabbiani gt 3 has a modular design and can be tailored to meet any customer requirement. Advance mechanical design, powerful motor units and electronic control are just some of the features that guarantee high production rates, flexibility, precision machining and a top quality cut finishing.
Advantages
HI-TRONIC DEVICE: high technology on the saw carriage.Very high quality finishing cutting standards together with high speed and precision with the total electronic control of the blades.
FLEXCUT 1/D: more cuts in less time.High efficiency due to the use of 2 pushers with a completely independent stroke.Drastic reduction in machining cycle times due to the simultaneous processing of several bars with different cuts.Extreme flexibility is achieved as the mobile unit is fitted with two grippers, one of which can be excluded, therefore guaranteeing a wide variability in the width of the strips that can be gripped.
PRISMATIC GUIDES WITH RECIRCULATING SPHERES: maximum linearity and minimum friction.Increased productivity capacity with high speeds, that can be reached both during the feeding stroke and return stroke (up to 170 m/min). The centralised lubrication, verified by control, guarantees the complete lack of maintenance.
PUSHER BEAM: maximum linearity and long time precision.Fast cycle times with high speeds in the return stroke (up to 135 m/min). Centralised and automated lubrication system that is managed by the PC (video monitoring) ensures the lack of maintenance.
