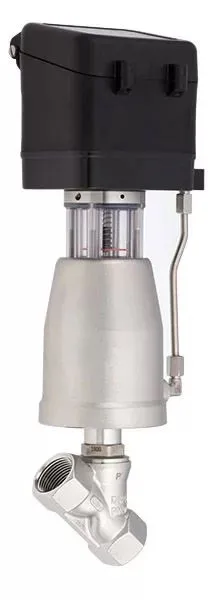

Type 7020 – Angle seat control valve

Type 7020 – Angle seat control valve

Pneumatic control valve with angle seat design. The integrated positioner type 8049 means that a compact design is achieved. All parts that come into contact with the medium are made from stainless steel.

Size:
DN 8 - DN 80
Pressure:
PN 40
Material:
Stainless steel 1.4408
Temperature:
Media temperature: -30 °C to +200 °C
Applicatons from -100°C up to +220°C

Connection	Whitworth pipe thread NPT thread Welding ends Tri-clamp connection Special connections
Positioner	Digitaler positioner type 8049 - 2-wire, 4-wire - Ex-Pro explosion-proof - IO-Link - Integrated process controller IPC Pneumatic and electro-pneumatic positioner type 8047 - 2-wire - Ex version
Accessories	Inductive limit switches
Actuator variants	Piston actuator of - Brass (chrome plated) - Stainless steel - Polymer Stainless steel diaphragm actuator
Application	Gases, vapours, liquids
Versions	Low temperature version Pressure balanced version Degreased version, Silicon or PTFE-free version
