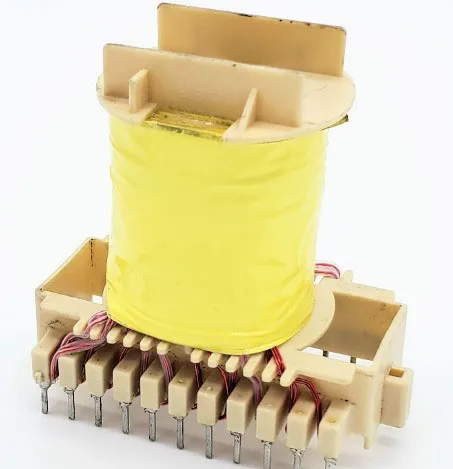

Flyback

Schott Magnetics flyback transformers (also known as line output transformers) are used by many industries in switched-mode power supplies for:

• Power and electrical supply conversion
• DC to DC power conversion
• AC-DC power supplies
• Converters and inverters
• Computers, PoE motors, generators, and electrical pumps

How Flyback Transformers Work

Key power supply parts include a/an:

• Flyback transformer
• Primary switch
• Mutually coupled inductor
• Output rectifier
• Input capacitor
• Output capacitor

All these parts work together to create a simple switch-mode power supply for AC/DC applications.
