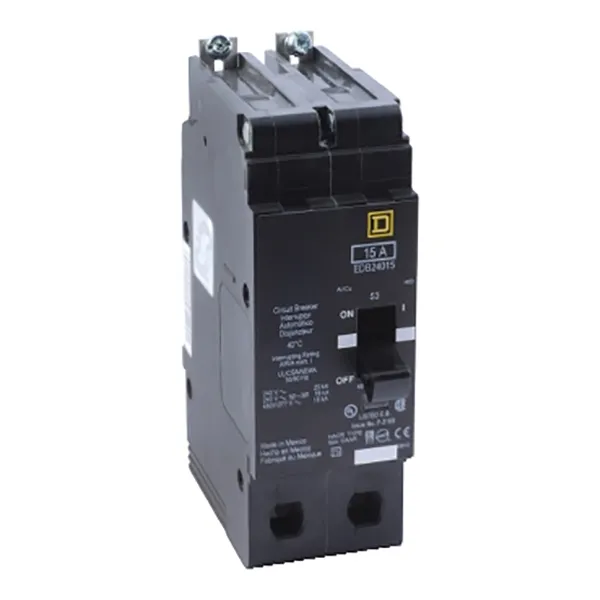

E-Frame Circuit Breakers
Square D™ NF lighting panel board circuit breakers
Lighting panel board circuit breakers from Square D™ by Schneider Electric™ provide a wide variety of robust features for use in Square D NF panel boards. With current ratings from 15 to 125 Amps, and included VISI-TRIP feature, these circuit breakers are proven effective and reliable.
Features
• Square D by Schneider Electric lighting panelboard miniature bolt-on mount circuit breaker. • Ideally designed to offer superior overload and short circuit protection. • Circuit breaker is an ideal choice for NF series panel-boards. • Available in 1P, 2P,3P and EPD type • Interrupt rating available in 18KA (EDB), 35 KA (EGB) and 65KA (EJB) for 480 Y /277V • Interrupt ratings available in 25KA (EDB), 65 K (EGB) and 100KA (EJB) for 240V • Ampere rating start at 15A and go upto 125 A • Miniature circuit breaker has mounting bolts to hold the breaker in place. • Miniature circuit breaker is UL listed, CSA certified and NOM certified • HACR Rated • Optional factory-installed electrical accessories include: 120 Vac shunt trip, 1A/1B auxiliary switch, and normally open alarm switch • Optional handle padlock attachment • Optional copper and compression lugs
