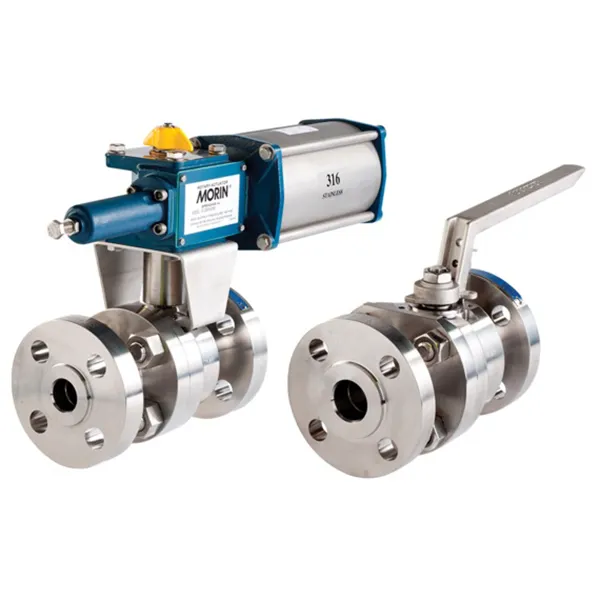

KTM Series
KTM Series
KTM full bore Class 600, 900 & 1500 fire-safe and anti-static, high pressure ball valve for the chemical and petroleum industries.
Specs
Certifications
CE, Fire Safe, PED, Regional, NACE
End Connection
Butt Weld, Flanged, Hub, Socket Weld
Application
Fuel Gas, Cogeneration, City Gates & District Stations, City Gate/Distribution Station, Chemical Dispersion, Burner Management Systems , Fuel Management Systems, Gas Gathering and Compression, Product Transfer, Refining, Separation, Storage & Dis
Body Design
Long Pattern, Side Entry
Material
316 Stainless Steel, 316L Stainless Steel, Alloy, Carbon Steel, Inconel, Duplex, Super Duplex
Process Connection Type
1500RF, 1500RTJ, 600RF, 600RTJ, 900RF, 900RTJ, Flanged, SWE, Weld end
Seat/Seal Type
Ball, Soft Seal
Shutoff Class
Zero Leakage, API 598
Standards
ASME B16.34, API 608
Valve Size
NPS 1/2 / DN 15, NPS 1-1/2 / DN 40, NPS 3/4 / DN 20, NPS 1 / DN 25
Valve Size Standard
DN, NPS
Valve Type
Ball, Floating Ball Valve
Media
Liquid, Aggressive Liquids/Gases, Fuel Oil, Light Oil, Liquid Propane Gas, LPG, Natural Gas, Specialty Gases
Stem
Adjustable packing, Live loaded
Features
- Designed to ASME B16.34
- Two piece bolted body design complies with ASME B16.34 & ASME VIII.
- ISO 5211 top mounting flange.
- Face to Face to API 6D / ASME B16.10
- Fire safe tested and certified to API 607 6th Ed. by Lloyd’s Register Asia.
- Flange connection to ASME B16.5 as standard.
- Carbon steel or stainless steel body as standard.
- Precision 316 stainless steel ball and UNS S31803 stem as standard.
- Blow-out proof shouldered stem.
- Anti-static tested.
- A secondary metal ‘fire-safe’ seat.
- Cantilevered block seat as standard.
